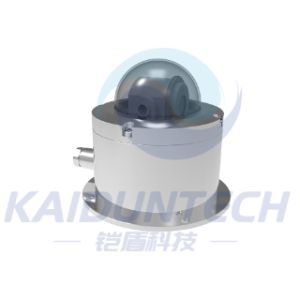

ATEX Approval Explosion Proof Anti-Corrosion PTZ IR Dome IP Camera
Key Features
Application Scenarios
| Oil & Gas | Refineries & Fuel Depots | Surevillance & Security | Chemie & Pharma | Oil Tankers |
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Service
Specification
| Camera | |
| Image Sensor: | 1/2.8"Sony415 8MP CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/10,000 s |
| Lens: | 4X 2.8-12mm Motor Lens |
| Day&Night: | IR cut filter with auto switch |
| Image Enhancement: | BLC/3D DNR/D-WDR |
| Motion Detection | Support |
| Intelligent Detection(AI) | Human Detection,Vehicle detection |
| Privacy Protection | Support(4 Self-customized Areas) |
| Wather-Proof: | IP66 |
| Illumination for Infrared Switching: | 0.5~3Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 2pcs LEDs//35m IR |
| Compression Standard | |
| Video Compression: | H.265/H.264/MJPEG |
| Video Bit Rate: | 128Kbps~12Mbps(main stream H.265) 64kbps~1024kbps(sub stream H.265) 64kbps~1024kbps(thr stream H.265) |
| Audio Compression: | G711U/G711A |
| Dual Streams: | Yes |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 3840*2160(8MP)@20fps |
| Frame Rate: | 20fps(8MP).MAX main stream 30fps(D1) .MAX sub stream 10fps(FHD).MAX thr stream |
| Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | EXT/Day/Night/Auto/Time |
| Audio | |
| Line IN/line OUT: | Support(1ch) |
| Build-in MIC: | Optional |
| Volnume adject: | yes |
| Network | |
| Network Protocols: | HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS,RTMP,IP Search(Support P2P, NVR, NVS etc.) |
| System Compatibility: | ONVIF(17.2 with profile S) |
| On-line Viewing | Max. Support 2 Users Simultaneously |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
| Alarm in/out interface: | Support(1ch) (Optional) |
| DC Power Plug: | DC Power Femate Interface |
| PTZ | |
| Angle: | Pan:0~355° / Tilt:0~90° |
| speed: | Pan: about 35°/s / Tilt: about 35°/s |
| preset: | support 16 preset |
| General | |
| Operating Conditions | -10℃-+60℃ |
| Humidity:s100%RH(non-condensing) | |
| Power supply | DC12V±10%/ POE optional |
| Weight | 4kg |
| Verificaion to | BS EN 62676-1-1 – Video surveillance systems for use in security applications |
Certificate
Dimensions
Accessories
Anti-Shake Bracket 316L Exe Type Juction Box Ex-Proof Hose
